Model

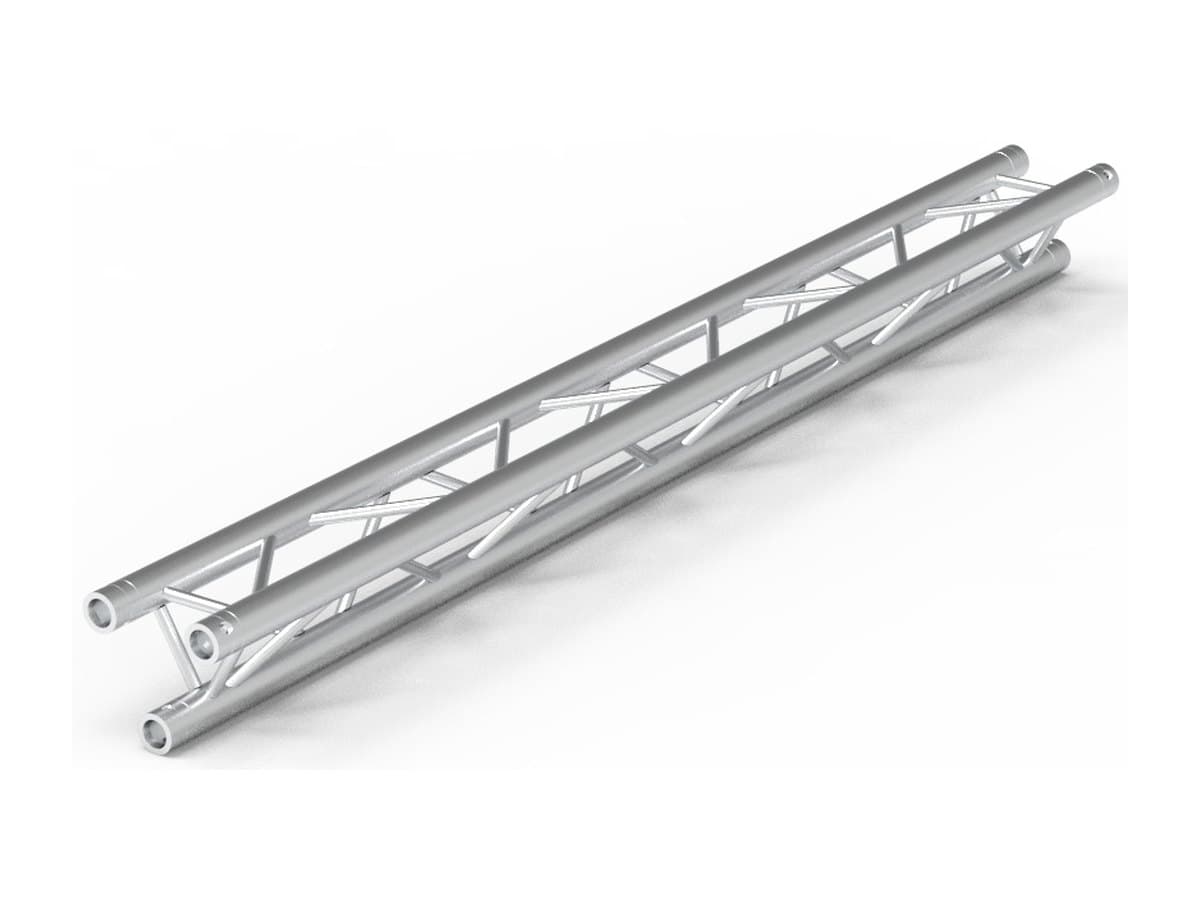

20x20 Üçgen Truss
Main tube Ø48.5×2.3 mm · Straight brace Ø20×2.5 mm · Diagonal Ø16×2.5 mm · Ø50 conical connection
Catalogue
Triangular Truss
Triangular-section truss series in EN-AW 6082 T6 aluminium alloy: fixed 20x20, 29x29 and 39x39 and folding 40x40, 52x52 and 62x62 models. Suitable for indoor and outdoor use. Durable construction with anti-buckling diagonal end bracing; quick couplers provide simple and safe assembly. Electrostatic powder coating is available on request. See the e-catalogue for detailed load tables.
3D model built from the official product image; dimensions are illustrative.
Models
Model

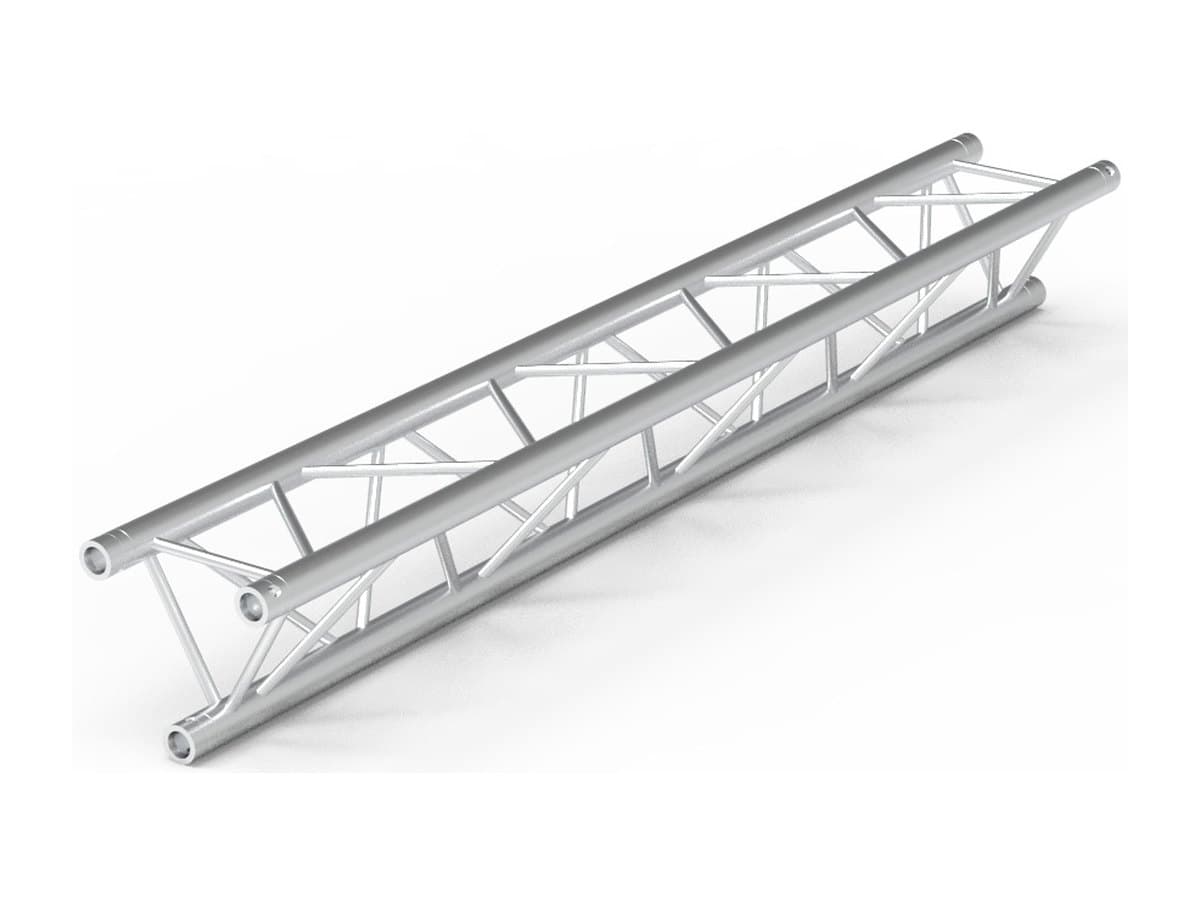

29x29 Üçgen Truss
Main tube Ø48.5×2.3 mm · Straight brace Ø20×2.5 mm · Diagonal Ø16×2.5 mm · Ø50 conical connection
Model

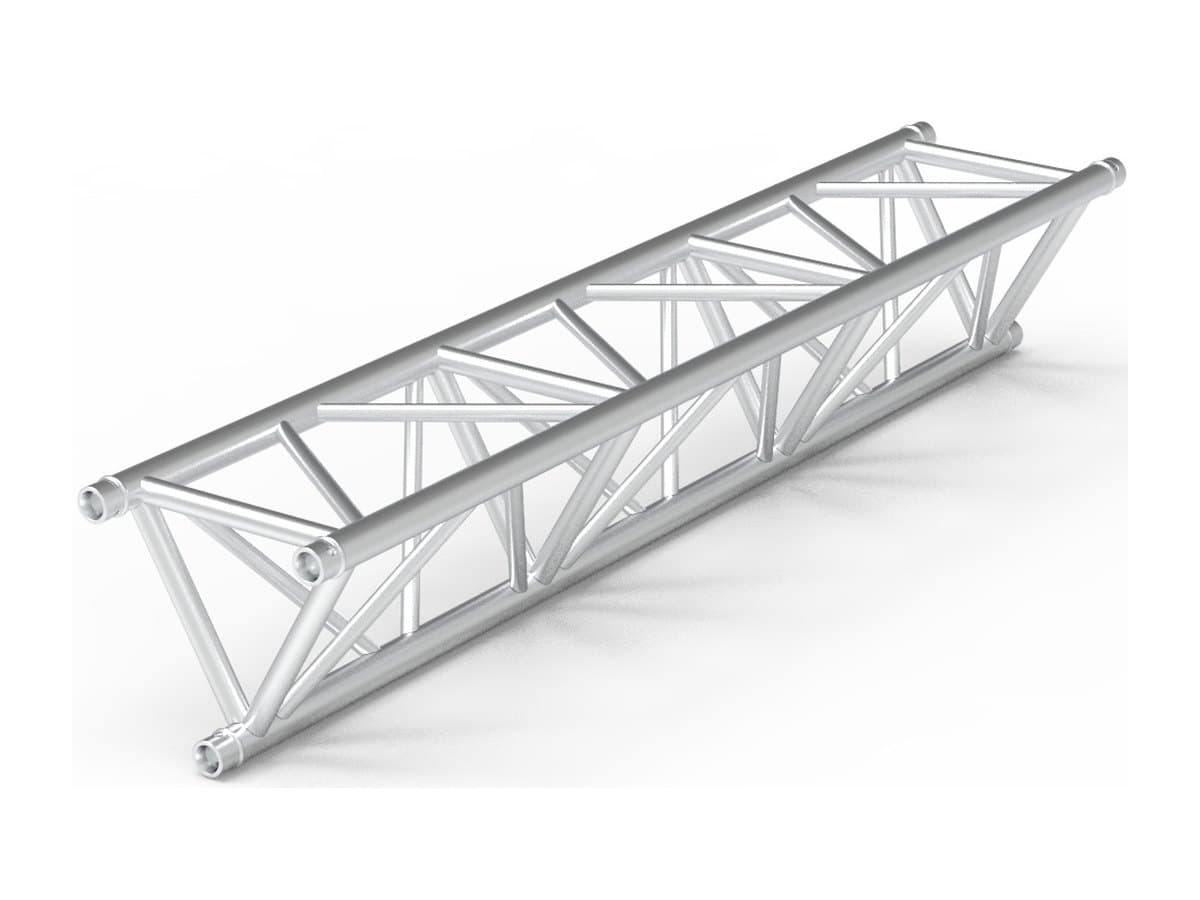

39x39 Üçgen Truss
Main tube Ø48.5×3.3 mm · Straight brace Ø30×3 mm · Diagonal Ø20×2.5 mm · Ø50 conical connection
Model

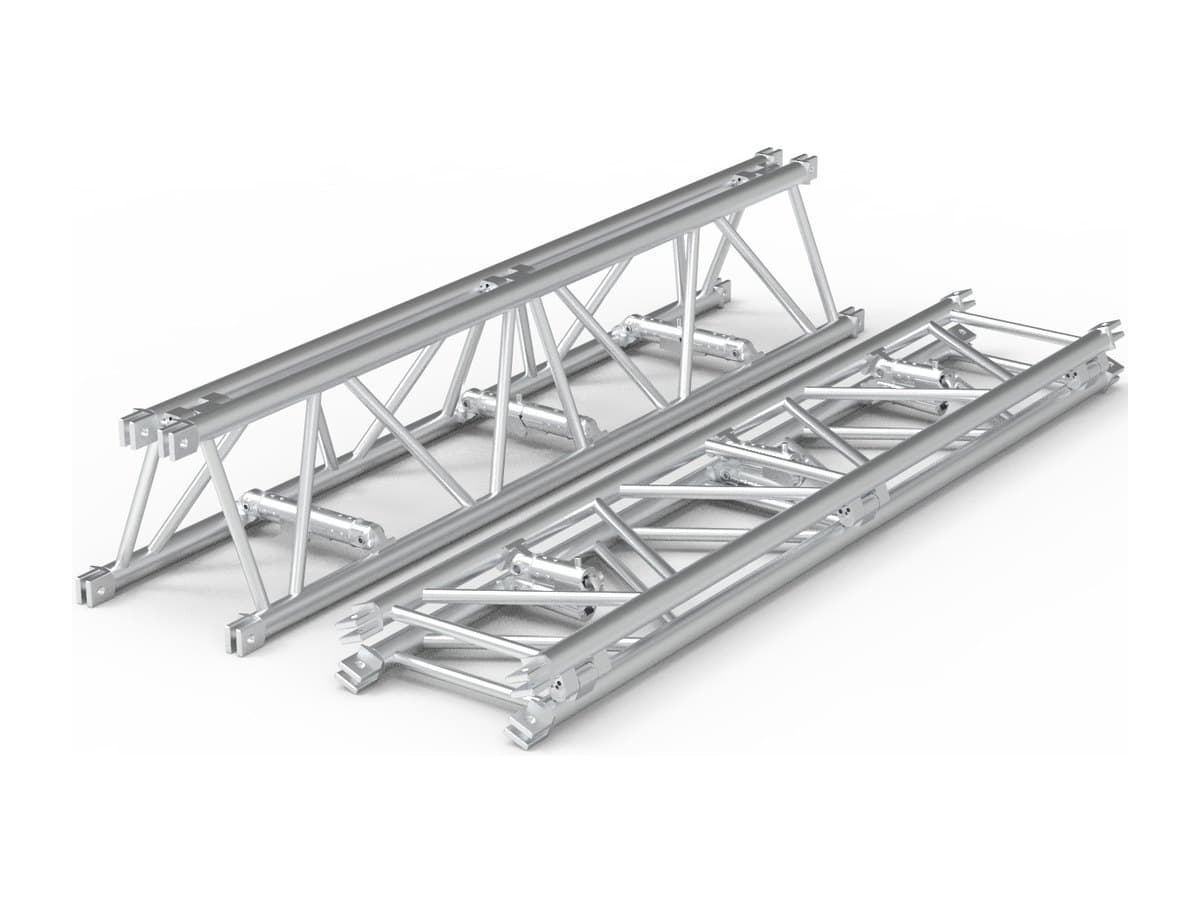

40x40 Üçgen Katlanır Truss
Main tube Ø48.5×2.7 mm · Straight brace Ø25×2.5 mm · Diagonal Ø25×2.5 mm · 50×50 fork connection
Model

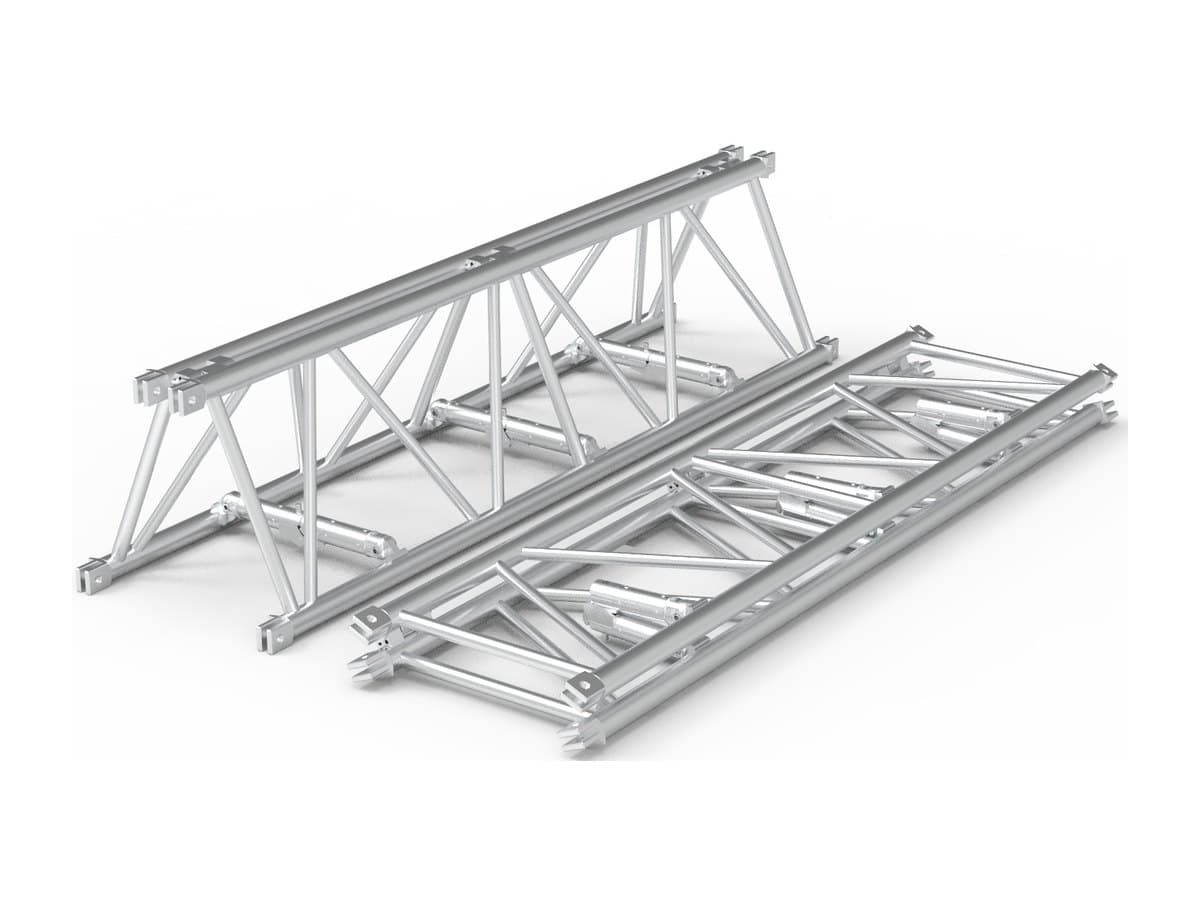

52x52 Üçgen Katlanır Truss
Main tube Ø48.5×3.3 mm · Straight brace Ø30×3 mm · Diagonal Ø25×2.5 mm · 50×50 fork connection
Model

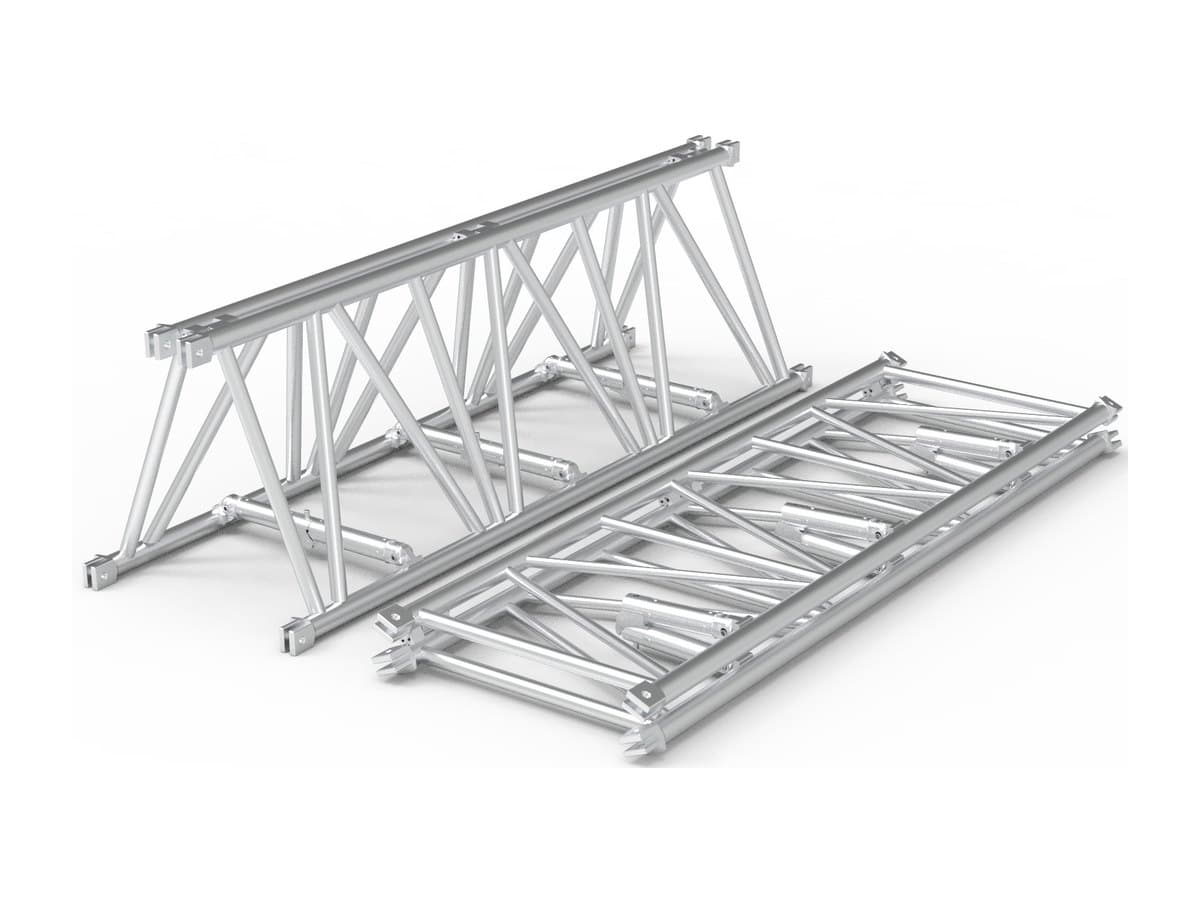

62x62 Üçgen Katlanır Truss
Main tube Ø48.5×3.3 mm · Straight brace Ø35×3 mm · Diagonal Ø30×3 mm · 55×55 fork connection
